Astride Stander – to promote hip health and prevent lower limb contractures in young children with cerebral palsy GMFCS 2 /3 and 4

Description

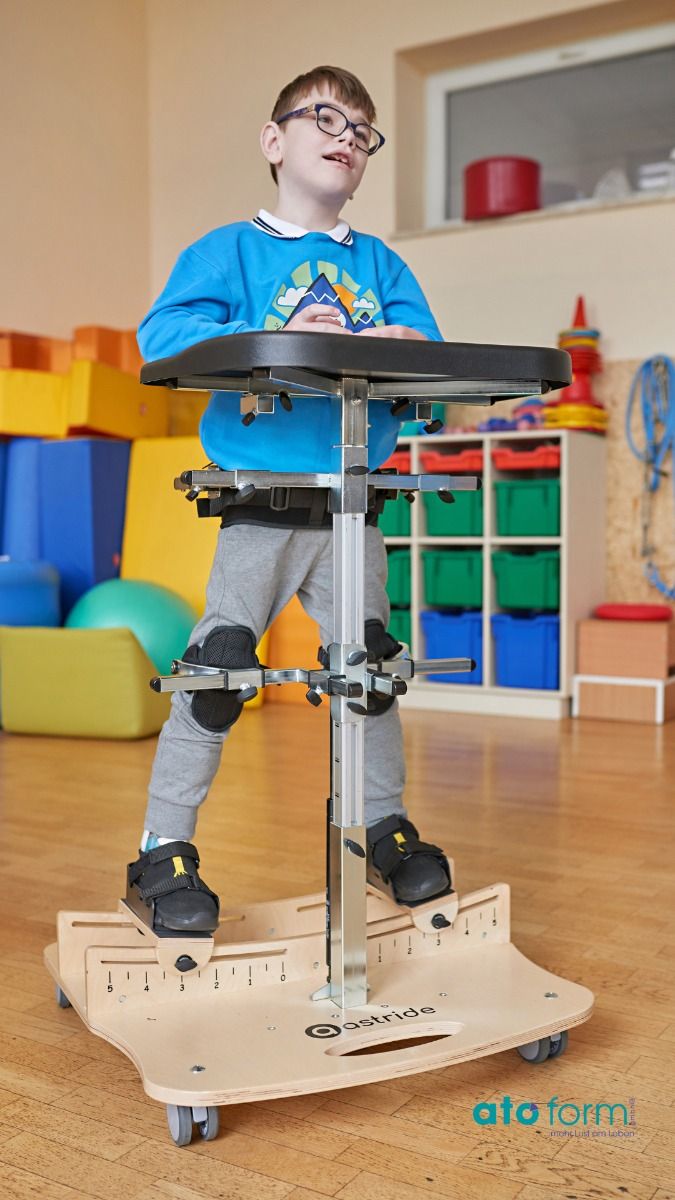

ASTRIDE™ is a modern static standing frame with an abduction function. Its improved and lighter version allows for a wide range of adjustments within the feet, knees, and torso area, enabling fully safe and proper positioning of the user’s body in a standing position.

Available in one size for children 4-8 years, between 90 – 130cm in height

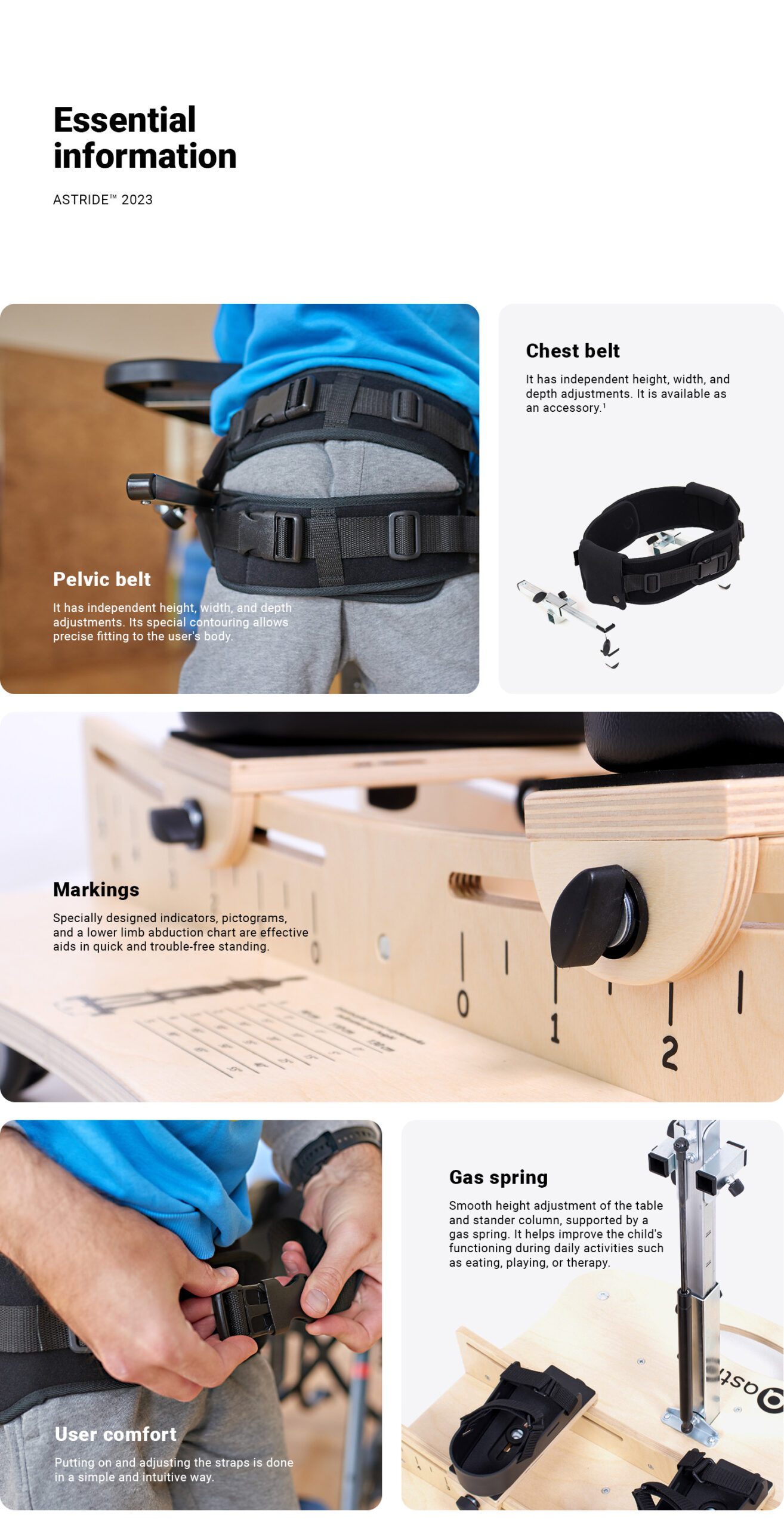

The new version of ASTRIDE™ features easy-to-fasten belts: chest and hip belts, with independent adjustments in all planes within the pelvic and torso area, providing complete control over hip positioning. This function is particularly helpful in cases of concurrent postural abnormalities. (NB The chest belt is an option extra)

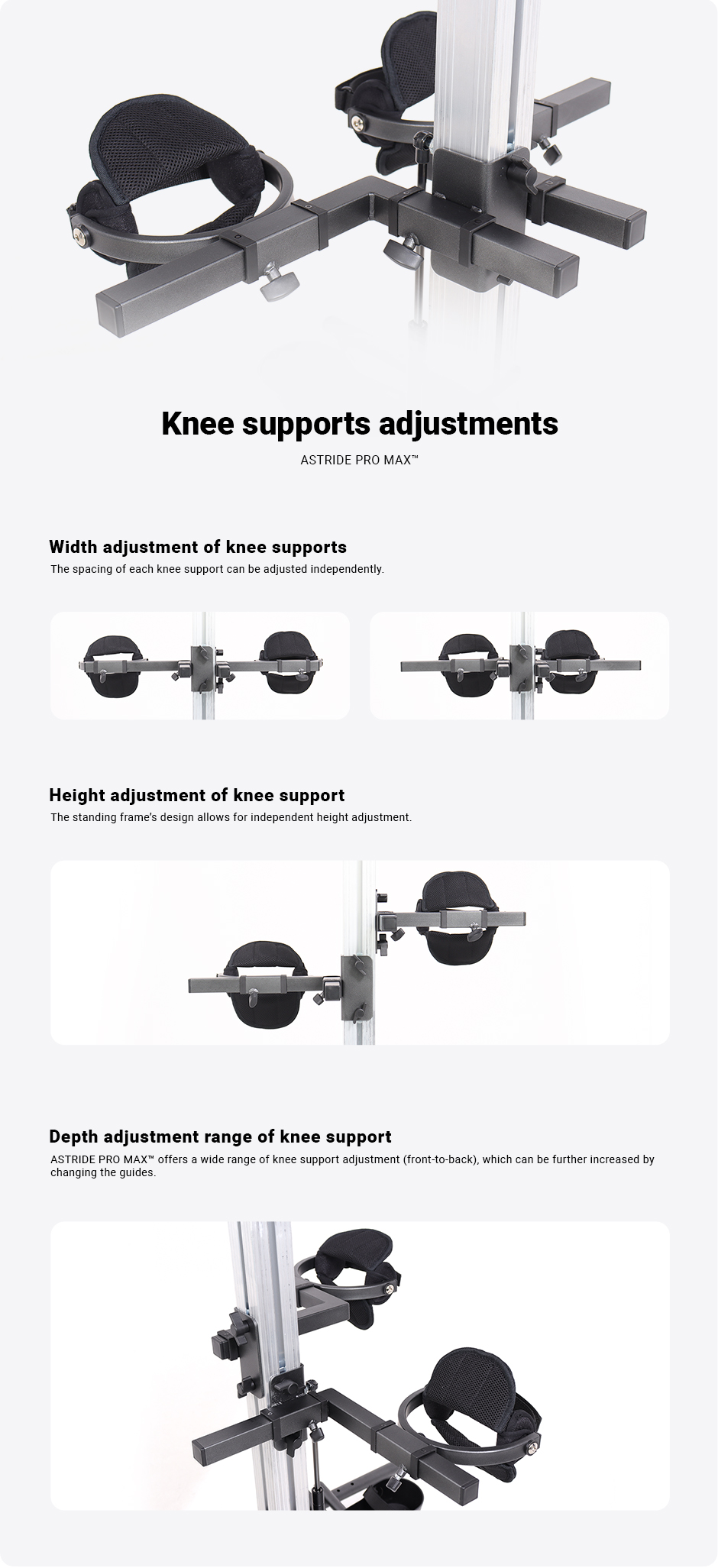

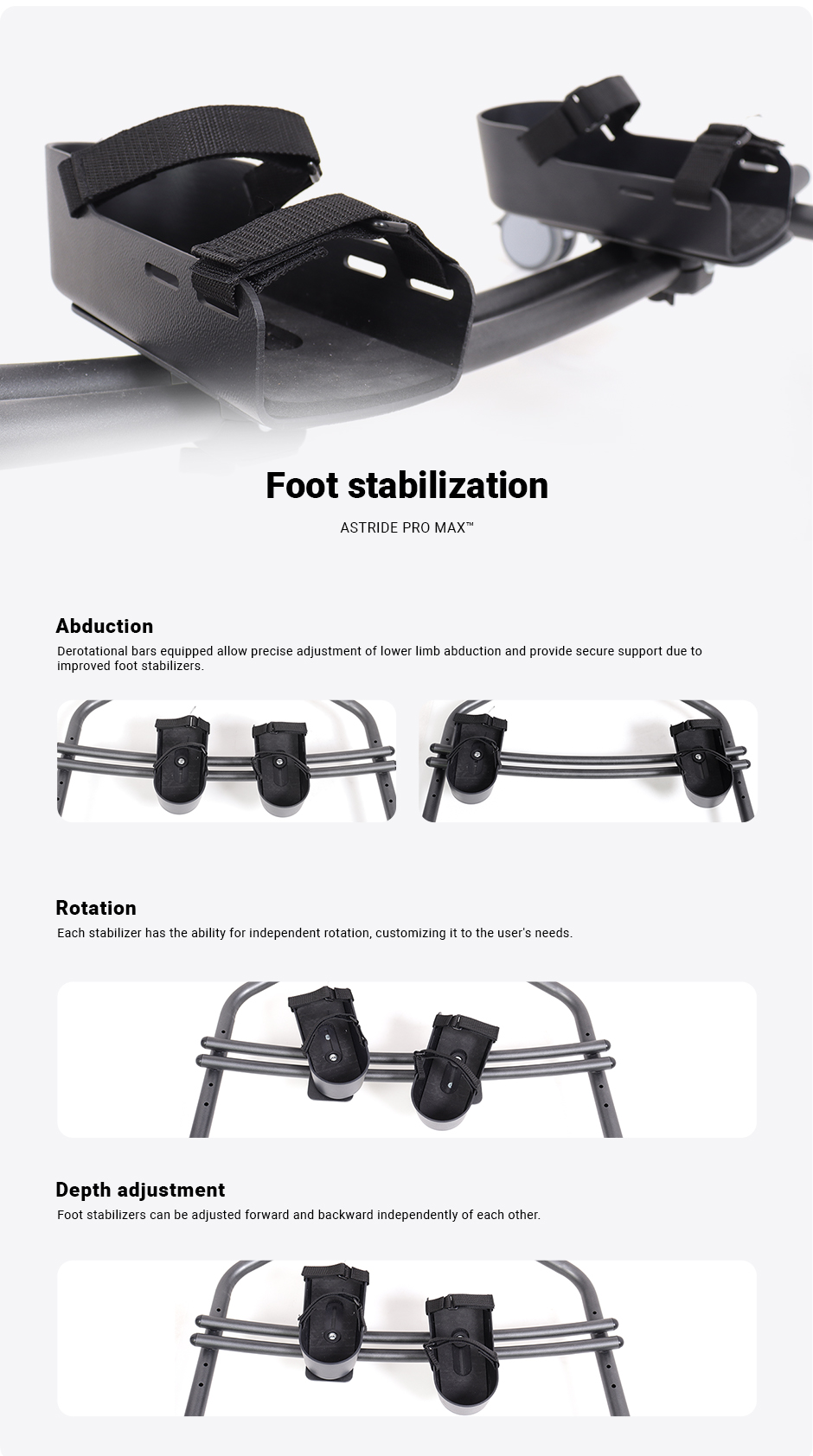

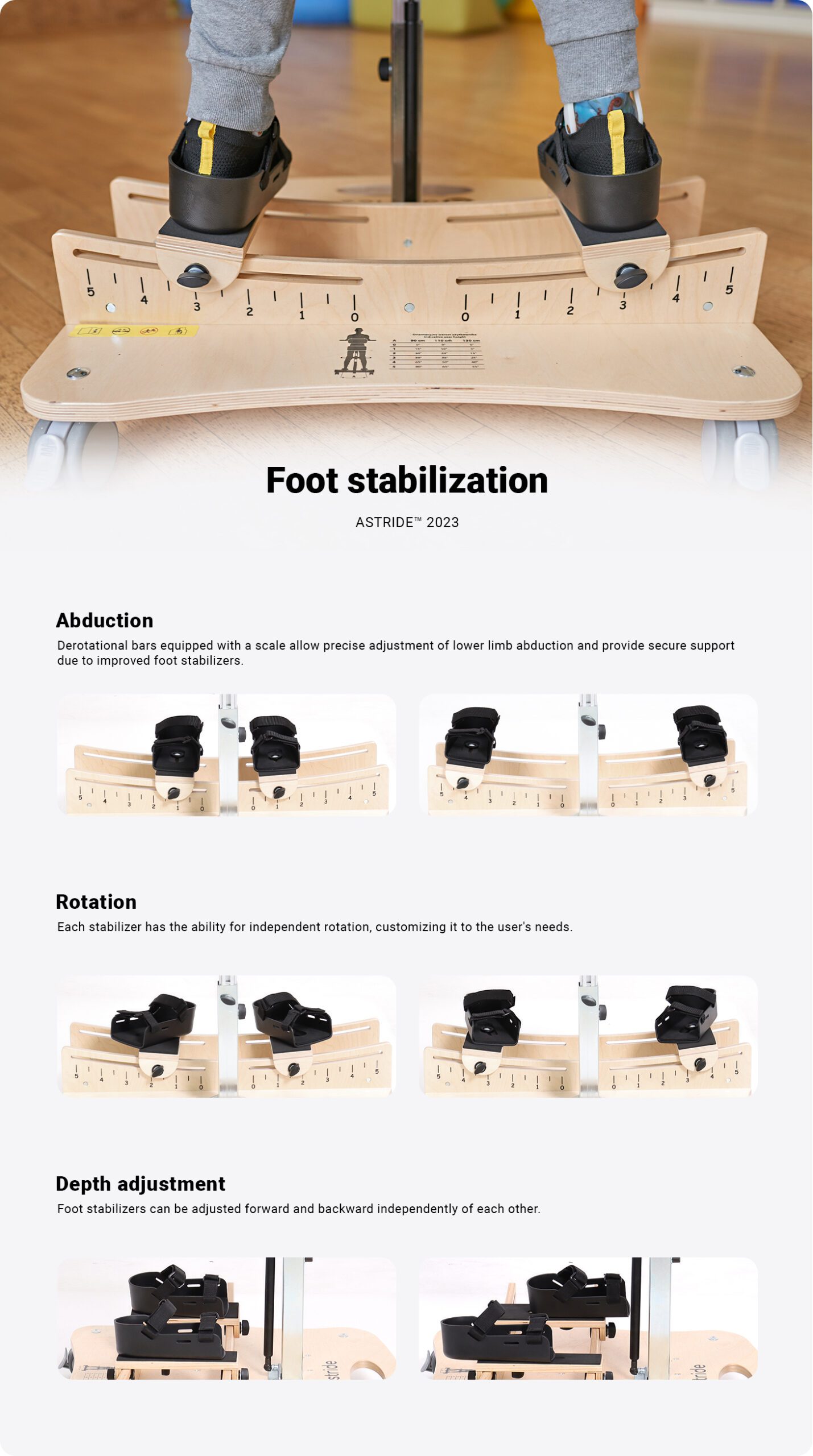

Individually tailored foot stabilizers and contoured footrests with lateral supports ensure a stable positioning of the lower limbs. Rotating kneepads within the knee joint area alleviate pressure on the patella, stabilizing and maintaining correct leg positioning during upright standing.

A stable base equipped whit wheels with independent brakes allows easy transfer of the standing frame between rooms. The smooth height adjustment of the standing frame and table, aided by a gas spring mechanism, facilitates therapy and everyday activities such as learning, playing, or having meals.

Price starts at €1795.00



Sizes

Symbol Measurement Unit Size 1
W indicative user height* [cm] 90 – 130
A chest belt height (accessories) [cm] 68 – 98
B chest belt width (accessories) [cm] 16 – 32
chest belt parimeter (accessories) [cm] 54 – 92
C pelvic belt height [cm] 42 – 75
D pelvic belt width [cm] 16 – 34
pelvic belt parimeter [cm] 54 – 98
E knee support height [cm] 23 – 55
F knee supports width [cm] 15 – 44
H tray height [cm] 60 – 80
I footer width [cm] 8 (size S)
10 (size M)**
J footer spacing [cm] 12 – 63
K footer length [cm] 19 (size S)
23 (size M)**
max. user weight [kg] 50

Note: Measurement tolerance range is +/- 1 cm / ½ in.
* Height cannot be the main parameter while choosing the product size.
**The stander is equipped with feet in size S as standard. (It is possible to change to size M when placing an order).

WEIGHT AND DIMENSIONS

Symbol Measurement Size 1
X width [cm] 70
Y length [cm] 70
Z height [cm] 88 – 118
weight [kg] 19

Note: Measurement tolerance range is +/- 1 cm / ½ in.
Note: Approximate values, depending on the product configuration.

Accessories

Accessories



Safety
    • AST_176 Chest belt with mounting tubes
      AST_176 Chest belt with mounting tubes

Case study



Early Active Upright Standing in Infants and Young Children – 13.12.2023
